Details
The core of our 951 Series calls upon our +25 years of knowledge and experience in designing new and ground-breaking products. Our continued world class development means that we create mountain bikes with confidence-inspiring handling and smooth riding characteristics all in an affordable package. Our high-quality foundational build kits give great functionality, and most importantly, great reliability for riders of all levels.
The 951 XC comes standard with components that have been tested and vetted by our global team of ambassadors and athletes. From the Fox Performance level suspension to the 12-speed SRAM drivetrain, all components are backed by world class manufacturers.

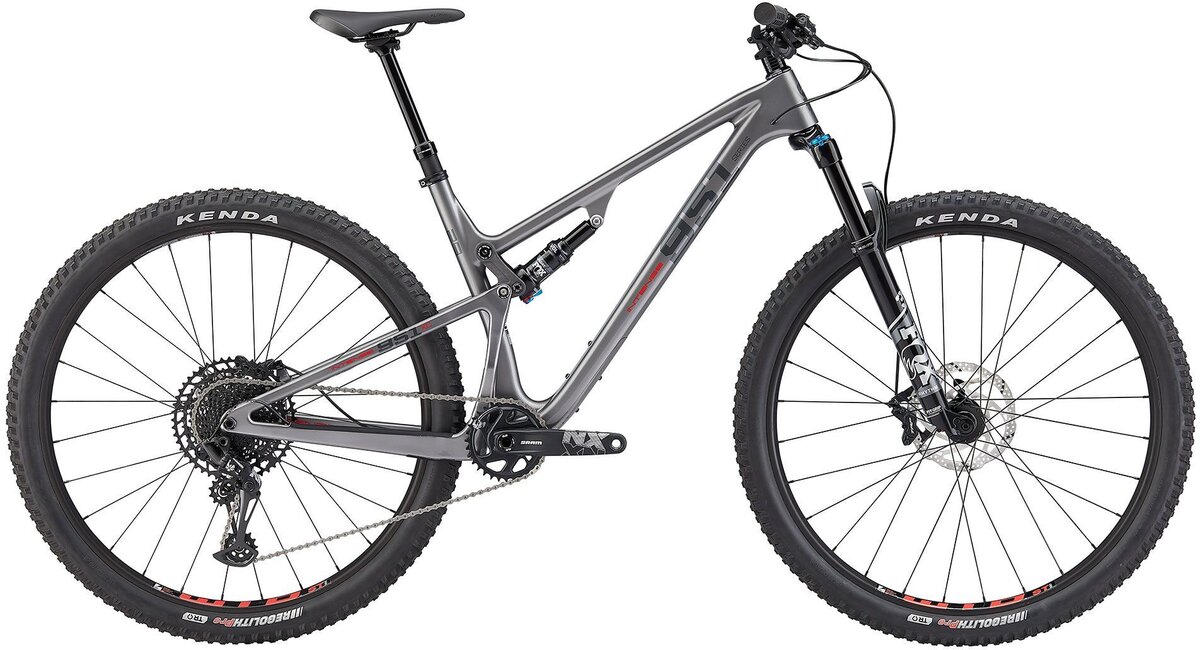

INTENSE 951 XC 29” Carbon Fiber Front and Rear Triangle 120mm Travel. FOX Rhythm 34 Float. 120mm Travel. Grip Damper - Sweep Adj FOX Performance Float DPS. 3-position (Open, Trail, Lock-out) CANE CREEK AER Integrated IS41-IS52/40 STEM INTENSE Recon 45mm INTENSE Recon 760mm width INTENSE Lock-on TRP Slate T4 Calipers and Levers, Front and Rear TRP 180mm Front and 160mm Rear SRAM NX Eagle 12sp DERAILLEUR SRAM NX Eagle 12sp SRAM NX Eagle 32t. ST. 170mm. (S), 175mm. (M, L, XL) BOTTOM BRACKET SRAM DUB SRAM PG 1230 Eagle 12sp 11-50t CHAIN SRAM NX Eagle 12sp HUBS INTENSE Alloy SPOKES DT TIRES KENDA Regolith 29” x 2.20” PEDALS PLATFORM INTENSE Recon Dropper 125mm Travel (S), 150mm Travel (M,L), 170mm Travel (XL) FIZIK Terra Alpaca X5, Alloy Rails
FRAME
FORK
REAR SHOCK
HEADSET
HANDLEBARS
GRIPS
BRAKES
ROTORS
SHIFTER
CRANKS / CHAINRING
CASSETTE
SEATPOST
SADDLE (SEAT)
SIZE | Small | Medium | Large | X-Large |
---|---|---|---|---|
A: WHEELBASE | 1143mm 45" |
1169mm 46" |
1196mm 47" |
1222mm 48" |
B: TOPTUBE LENGTH | 589mm 23.2" |
614mm 24.2" |
640mm 25.2" |
665mm 26.2" |
C: CHAINSTAY LENGTH | 439mm 17.3" |
439mm 17.3" |
439mm 17.3" |
439mm 17.3" |
D: HEADTUBE LENGTH | 90mm 3.54" |
95mm 3.7" |
105mm 4.13" |
115mm 4.5" |
E: HEADTUBE ANGLE | 66.4 ° | 66.4 ° | 66.4 ° | 66.4 ° |
F: REACH | 409mm 16.1" |
433mm 17.1" |
457mm 18." |
479mm 18.9" |
G: STACK | 578mm 22.8" |
583mm 22.9" |
593mm 23.3" |
602mm 23.7" |
H: BB HEIGHT | 339mm 13.3" |
339mm 13.3" |
339mm 13.3" |
339mm 13.3" |
I: BB DROP | 30mm 1.17" |
30mm 1.17" |
30mm 1.17" |
30mm 1.17" |
J: SEATTUBE ANGLE (EFFECTIVE) | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
K: SEATTUBE (ACTUAL) | 68.3° | 68.3° | 68.3° | 68.3° |
L: SEATTUBE LENGTH (K) | 406mm 16" |
437mm 17.2" |
488mm 19.2" |
538mm 21.2" |
M: STANDOVER HEIGHT | 779mm 30.7" |
782mm 30.8" |
787mm 31" |
792mm 31.2" |
FIND YOUR SIZING
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Medium | 21SCP9SPTM-SIL-FJM-NA | INT26603690L |
