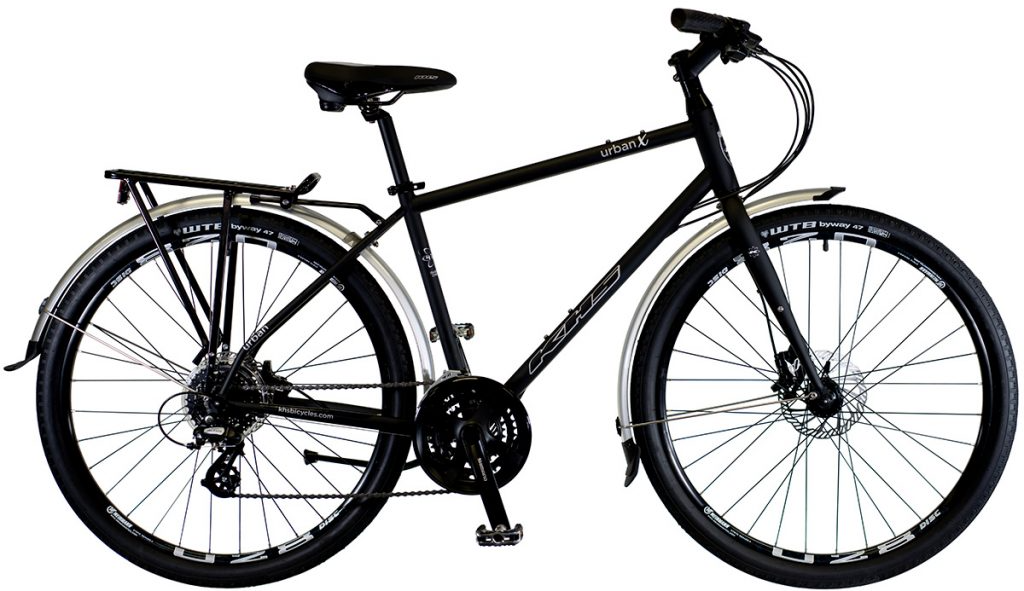

KHS Urban X

KHS Urban X
$849.00
Color:
Matte Black
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience. We will contact you when your order is ready.

Details

More and more people are riding bicycles to get where they need to go. Commuter bikes are designed to ride comfortably, efficiently, and reliably. Save gas, get in shape, and save the environment. KHS has created three distinct lines of bikes to cater to every commuter's needs.

Geometry Chart:
SmallMedium/17.5Large/19X-Large/20.5
s/t c-t 394/15.5 457/18 521/20.5 584/23
h/t° 71° 71° 71° 71°
s/t° 74° 74° 74° 74°
t/t effectv 548/21.6 565/22.2 577/22.7 589/23.2
c/s 450/17.7 450/17.7 450/17.7 450/17.7
BB Height 290/11.4 290/11.4 290/11.4 290/11.4
s.o. 732/28.8 772/30.4 813/32 853/33.6
h/t L 130/5.1 150/5.9 165/6.5 185/7.3
Stack 550/21.6 568/22.4 583/22.9 602/23.7
Reach 389/15.3 401/15.8 410/16.1 417/16.4

Specs

Frame 4130 Double Butted CrMo Tubing and Carrier Bosses, Forged Disc Mount, Internal Cables
Fork Hi-Tensile Unicrown Straight Blade, 1-1/4" Tapered
Rims Weinmann Aluminum U28, Disc Double Wall, 27.5x32H
Hubs Front: KT Aluminum Disc, QR w/Rubber Seal
Rear: KT Aluminum Disc, QR w/Rubber Seal, Cassette
Spokes 14G Stainless Black, 32x32
Tires WTB Byway, 27.5 x 47 mm
Bottom Bracket Cartridge Bearing
Crankset Shimano FC-TY301, 48/38/28T w/Chainguard, S-M:170, 175
Shifters Microshift TS71Z, 3x8
Front Derailleur Shimano FD-TY710, 28.6mm
Rear Derailleur Shimano Altus, M310
Cassette/Freewheel Shimano CS-HG318, 11-34T, 8-Speed
Chain KMC Z8.3
Brakes Bengal Aries 3,Hydraulic Disc, 160mm Wave 12 Rotors
Brake Levers Bengal Aries 3
Handlebars Aluminum Trekking, 630mm, 31.8mm
Tape/Grips Q2 Ergo Lock-On, Dual Density
Stem KHS Aluminum Threadless, 25D, 4-bolt, S: 80mm, M-L:90mm, XL: 100mm
Headset Threadless 1-1/8”, Zero Stack
Seatpost Aluminum Micro-Adjust, 27.2mm
Saddle KHS Ultra Comfort, Soft Shell
Pedals Wellgo Full Aluminum w/DU Bearing
Accessories & Extras Kickstand, Fenders, Aluminum Rear Carrier

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Black / Small 756928937866 42-0610
Matte Black / Medium 756928937873 42-0615
Matte Black / Large 756928937880 42-0620
Matte Black / X-Large 756928937897 42-0625
