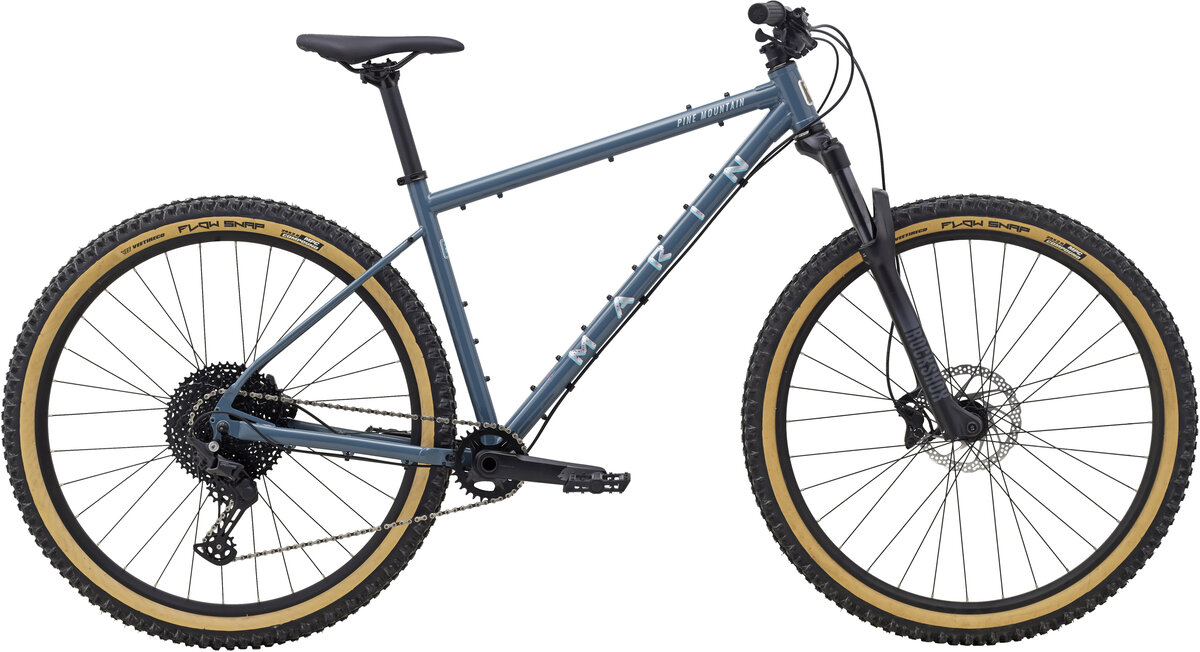

Marin Pine Mountain 1
This item is currently not available.
Details
The Marin Pine Mountain is a fresh take on what an adventure trail bike should be capable of. The Series 2 and Series 3 CrMo frames have been constructed around 29x2.6” wheels/tires, with geometry blending the stability and raucous fun of aggressive trail geometry with all day comfort and pedalability for a wide variety of trail. A plethora of eyelets on the frame and the Bedroll Bar let you customize your bike and gear to each and every adventure, and wide- range drivetrains and sturdy trail suspension forks make sure you can get out and back with a smile and a story worth telling.
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| Head Tube Angle | 66 | 66 | 66 | 66 |
| Head Tube Length (mm) | 95 | 100 | 105 | 110 |
| Seat Tube Angle | 75 | 75 | 75 | 75 |
| Seat Tube Length (mm) | 381 | 431 | 482 | 520 |
| Top Tube Effective (mm) | 588.5 | 620 | 646 | 677 |
| BB Height | 318 | 318 | 318 | 318 |
| BB Drop | 60 | 60 | 60 | 60 |
| Fork Offset (mm) | 44 | 44 | 44 | 44 |
| Stand Over Height | 697.6 | 742.5 | 787 | 818.9 |
| Wheel Base | 1145 | 1177 | 1204 | 1236 |
| Chain Stay (mm) | 430 | 430 | 430 | 430 |
| Seat Post Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Stack | 629 | 633.4 | 638 | 642.6 |
| Reach | 420 | 450 | 475 | 505 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Stem Length (mm) | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 175 | 175 | 175 |
| Size | Rider height range |
|---|---|
| Small | 5'3" to 5'6" |
| Medium | 5'6" to 5'9" |
| Large | 5'9" to 6'0" |
| X-Large | 6'0" to 6'3" |
Specs
| Frame | Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts |
|---|---|
| Fork | RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset |
| Rims | Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible |
| Hubs | Forged Alloy, 141x9mm, Disc, 32HForged Alloy, 110x15mm, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Flow Snap, 29x2.6", Wire Bead |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD |
| Shifters | Shimano Deore 11-Speed |
| Rear Derailleur | Shimano Deore 11-Speed |
| Cassette/Freewheel | SunRace 11-Speed, 11-51T |
| Chain | KMC X11 |
| Brakes | Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor, Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor, Shimano MT400 Hydraulic |
| Brake Levers | Shimano MT400 Hydraulic |
| Handlebars | Marin Bedroll Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep |
| Tape/Grips | Marin BearPaw Locking |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Pine Mountain Trail |
| Pedals | Nylon Platform |
* Subject to change without notice.
