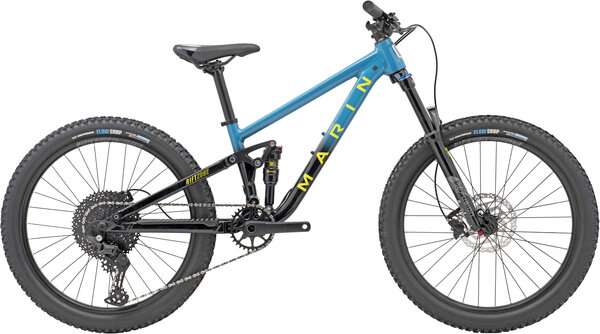

Marin Rift Zone Jr

Marin Rift Zone Jr
This item is currently not available.

Details

The Rift Zone 26 and Rift Zone Jr are for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full-size counterpart. Both models utilize the same frame and fork, so a Rift Zone Jr is easily upgradable to 26" wheels and longer cranks as your little ripper grows. 26" wheels and longer cranks not included, but your local Marin dealer can source the parts.

- ONE SIZE: 4'1" to 4'9"

TECHNOLOGY:
24" WHEELS – UPGRADEABLE TO 26"
The Rift Zone Jr can fit 26" wheels down the road, extending its life and versatility.

AIR SUSPENSION
Easily adjustable air suspension is tunable for a growing kid.

INTERNAL ROUTING
The Rift Zone 26 and Rift Zone Jr are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.

DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

Geometry
All lengths in millimeters

Sizes:
ONE SIZE
A- STACK 536.24
B- REACH 380
C- HEADTUBE ANGLE 67.5°
D- HEADTUBE LENGTH 105
E- SEATTUBE ANGLE 69°
F- SEATTUBE LENGTH 335
G- TOPTUBE EFFECTIVE 536
H- BB HEIGHT 305
I- BB DROP 10
J- CHAINSTAY 428.5
K- WHEELBASE 1018
L- STANDOVER HEIGHT 621
M- FORK OFFSET 42
SEATPOST DIAMETER 30.9
HANDLEBAR WIDTH 720
STEM LENGTH 45
CRANK LENGTH 170

Specs

Frame Series 3 6061 Aluminum Frame, 24" Wheel with Clearance for 26", 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB
Fork X-Fusion Velvet RLC 26", 120mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
Rear Shock X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware
Rims Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs Front: Forged Alloy, 100x15mm, Disc, 32H
Rear: Forged Aluminum, 32H, Disc Specific
Spokes 14g Stainless Steel
Tires Vee Tire Co, Flow Snap 24"x2.4", Tackee Compound, Wire Bead
Bottom Bracket External Sealed Cartridge Bearings
Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type
Shifters Shimano Deore, 11-Speed, SL-5100R
Rear Derailleur Shimano Deore Shadow Plus
Cassette/Freewheel SunRace 11-Speed, 11-46T
Chain KMC X11
Brakes Front: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Rear: Shimano BR-MT200 Hydraulic Disc, 160mm Rotor
Brake Levers Shimano BL-MT201
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back
Tape/Grips Marin Dual Density
Stem Marin 3D Forged Alloy, 35mm
Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Seatpost Marin Alloy, 30.9mm
Saddle Marin Speed Concept
Pedals Sold separately

* Subject to change without notice.
