Details

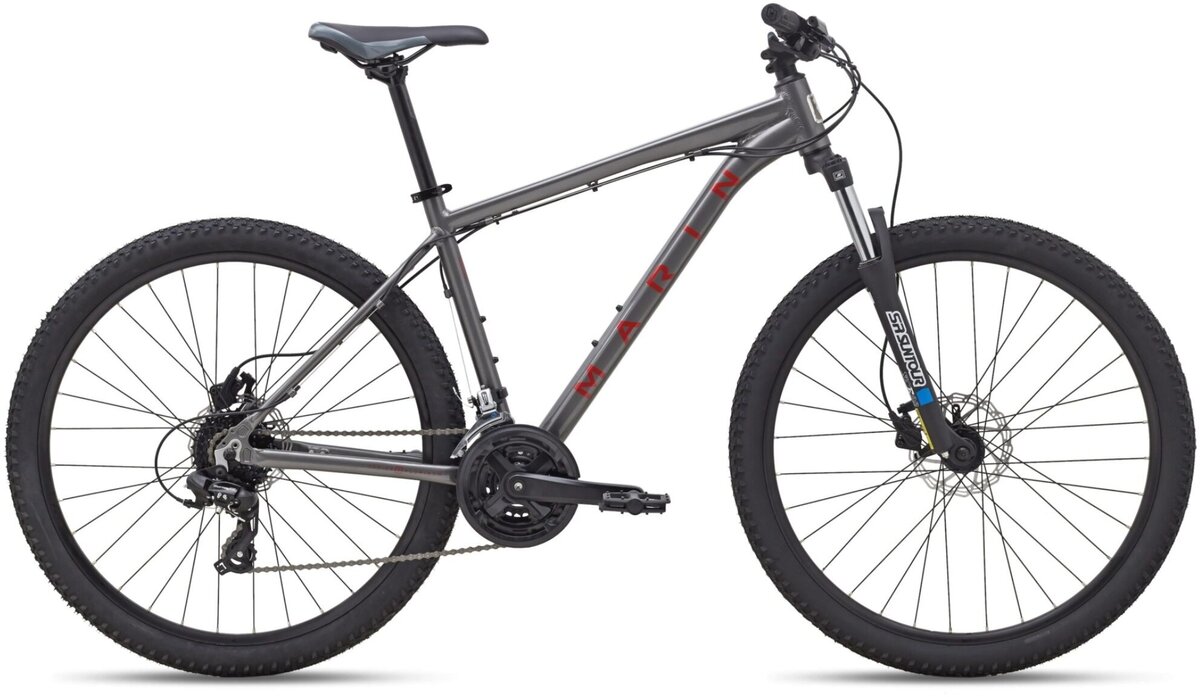

The Sky Trail is a great option for those looking for a fun, well-spec'd and dependable mountain bike. Perfect for exploring the neighborhood trail network, fire roads, or as a durable commuter.
The Sky Trail is built around a Series 1 aluminum hardtail frame and SR/Suntour XCE fork with 100mm travel and preload adjustment. A smooth shifting Shimano 3x8 drivetrain helps get you up and down the hills, while powerful hydraulic disc brakes provide smooth and steady braking.
GEOMETRY

S | M | L | |
---|---|---|---|
STACK | 610 | 610 | 650 |
REACH | 383.5 | 398.5 | 417 |
HEADTUBE ANGLE | 69° | 69° | 69° |
HEADTUBE LENGTH | 100 | 100 | 105 |
SEATTUBE ANGLE | 73° | 73° | 73° |
SEATTUBE LENGTH | 406 | 456 | 506 |
TOPTUBE EFFECTIVE | 570 | 585 | 605 |
BB HEIGHT | 299 | 299 | 299 |
BB DROP | 47 | 47 | 47 |
CHAINSTAY | 430 | 430 | 430 |
WHEELBASE | 1072 | 1087 | 1107 |
STANDOVER HEIGHT | 713 | 753 | 793 |
FORK OFFSET | 46 | 46 | 46 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 740 | 740 | 740 |
STEM LENGTH | 45 | 45 | 45 |
CRANK LENGTH | 170 | 170 | 170 |
Specs
Frame | Series 1 6061 Aluminum, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts, Disc Brake |
---|---|
Fork | SR Suntour XCE, 100mm Travel, Preload Adjustment |
Headset | Zero Stack (ZS) Threadless, ZS 44/28.6 | 44/30 |
Rims/Wheels | Double-Wall Alloy Rims, 32H |
Hubs | QR Alloy, 6-bolt |
Spokes | Stainless Steel, Brass Nipples |
Tires | MTB, 27.5 x 2.1" |
Crankset | Forged Aluminum, 42x34x24T, 170mm |
Chainwheel | , 42x34x24T |
Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
Chain | KMC Z-7 |
Front Derailleur | Shimano Altus |
Rear Derailleur | Shimano RD-TX800, 8-Speed |
Rear Cogs | Shimano Altus CS-HG200, 11-32T, 8 Speed |
Shifters | Shimano Altus, 3x8 Speed |
Handlebars | Alloy, 20mm rise, 740mm wide |
Tape/Grips | Entity MTB |
Stem | Alloy, 45mm |
Brake Levers | Alhonga Hydraulic |
Brakes | Alhonga Hydraulic |
Pedals | Nylon Platform |
Saddle | Entity MTB |
Seat Post | Alloy, 27.2mm |
Seat Binder | Quick Release |
* Subject to change without notice.
