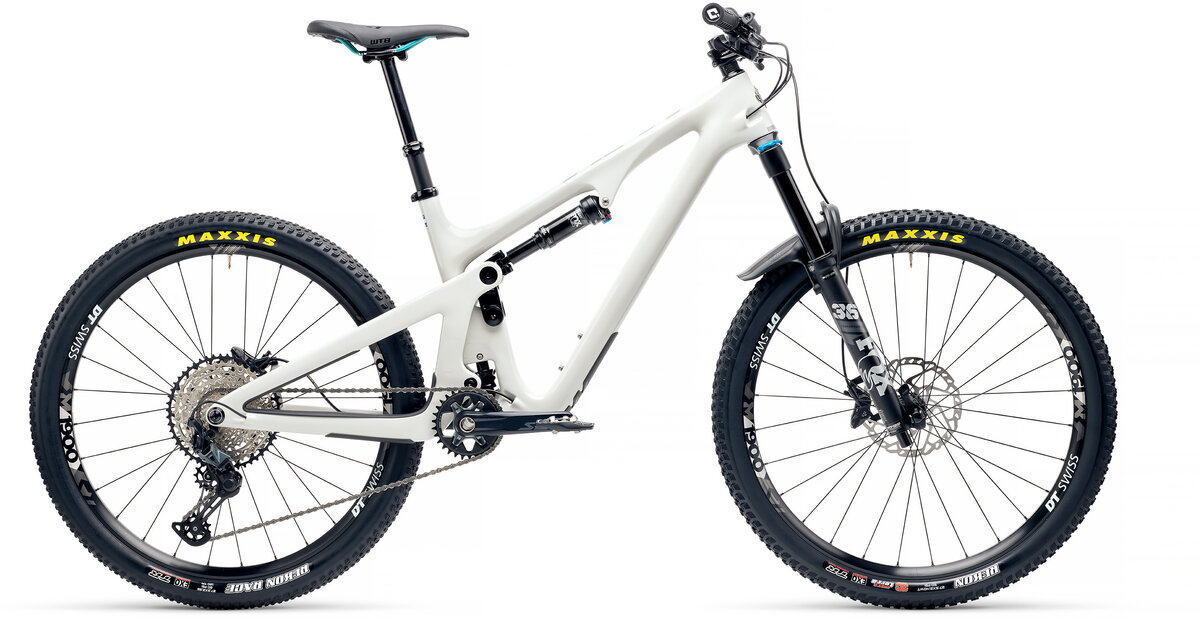

Yeti Cycles SB140 27.5 C1
$6,400.00
Details
Some say the SB140 never met a dirt it didn't like. We agree in spades. What's your pleasure? Drag a bar. Make an edit. Stay out after dark. Try it. Land it. Or just stay at it. Happy to pedal. Greedy for more. The mayor of jibtown, proudly wearing the rip crown. The SB140. Down to fun.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Wheel Size (IN) | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 |
| Reach (mm) | 406 | 431 | 461 | 481 | 506 |
| Top Tube Length [Effective] (mm) | 538 | 567 | 598 | 621 | 649 |
| Stack (mm) | 582 | 595 | 599 | 609 | 619 |
| Head Tube Length (mm) | 96 | 110 | 115 | 126 | 137 |
| Seat Tube Length (mm) | 355 | 380 | 410 | 450 | 495 |
| Seat Tube Angle [Effective] | 77.2° | 77.1° | 77.1° | 77° | 77° |
| Seat Tube Angle [Actual] | 73.6° | 73.6° | 73.6° | 73.6° | 73.6° |
| Head Tube Angle | 65.1° | 65.1° | 65.1° | 65.1° | 65.1° |
| BB Height [Estimated] (mm) | 339 | 339 | 340 | 340 | 340 |
| Front Center (mm) | 711 | 742 | 774 | 799 | 828 |
| Chainstay Length (mm) | 433 | 433 | 433 | 433 | 433 |
| Wheelbase (mm) | 1144 | 1175 | 1207 | 1232 | 1261 |
| Standover (mm) | 702 | 707 | 710 | 712 | 714 |
| Fork [Axle-To-Crown] (mm) | 548 | 548 | 548 | 548 | 548 |
| Fork Travel (mm) | 150 | 150 | 150 | 150 | 150 |
| Vertical Fork Travel (mm) | 136 | 136 | 136 | 136 | 136 |
| Fork Offset (mm) | 37 | 37 | 37 | 37 | 37 |
Specs
| Frame | C/Series carbon fiber |
|---|---|
| Fork | FOX PERFORMANCE 36/150MM |
| Rear Shock | FOX PERFORMANCE FLOAT DPS |
| Wheels | DT SWISS M1900 30MM |
| Tires | MAXXIS MINION DHF 2.6 EXO / MAXXIS REKON 2.6 EXO |
| Bottom Bracket | SHIMANO XT BB92 |
| Crankset | SHIMANO SLX 30T 170MM |
| Shifters | SHIMANO SLX |
| Rear Derailleur | SHIMANO SLX |
| Cassette/Freewheel | SHIMANO SLX 10-51 |
| Chain | SHIMANO SLX |
| Brakes | SHIMANO SLX 4 PISTON |
| Rotors | SHIMANO 180/SHIMANO 180 |
| Handlebars | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM |
| Tape/Grips | ODI ELITE PRO |
| Stem | BURGTEC ENDURO MK3 35X50MM |
| Headset | CANE CREEK 40 INTEGRATED |
| Seatpost | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XL: 210MM |
| Saddle | SILVERADO CUSTOM |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | MPN |
|---|---|
| Blanco / X-Small | B23147CXSPBLPAC016500 |
| Blanco / Small | B23147CSMPBLPAC016500 |
| Blanco / Medium | B23147CMDPBLPAC016500 |
| Blanco / Large | B23147CLGPBLPAC016500 |
| Blanco / X-Large | B23147CXLPBLPAC016500 |
| Smoke / X-Small | B23147CXSPGEPAC016500 |
| Smoke / Small | B23147CSMPGEPAC016500 |
| Smoke / Medium | B23147CMDPGEPAC016500 |
| Smoke / Large | B23147CLGPGEPAC016500 |
| Smoke / X-Large | B23147CXLPGEPAC016500 |
| Turquoise / X-Small | B23147CXSPTUPAC016500 |
| Turquoise / Small | B23147CSMPTUPAC016500 |
| Turquoise / Medium | B23147CMDPTUPAC016500 |
| Turquoise / Large | B23147CLGPTUPAC016500 |
| Turquoise / X-Large | B23147CXLPTUPAC016500 |
