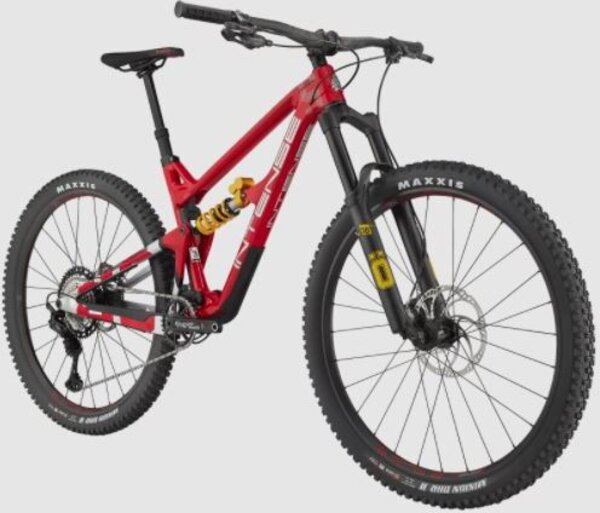

Intense Cycles Primer S
Details
The Primer S trail bike is the highest spec’d model in the Primer range. We’ve teamed up with legendary Swedish suspension specialists Öhlins to provide you with 140mm of rear travel and 150mm up front via their awesome TTX22M coil shock and RFX 36 M.2 air fork. The Primer S build is similar in many ways to the Primer 29 Pro, except that we have swapped out a few choice components just for you. It’s a quality package.
With the Primer S we have designed a bike that is capable and balanced off road, but also nimble and fun at the same time. The Primer S is a bike that is equally at home on long all-day rides, laps in your local woods or multi-day adventures. It gives a confidence inspiring trail ride, it’s the ultimate all-rounder.
| FRAME | Primer S 29” Optimized Layup Monocoque UD Carbon Front and Rear Triangle, Carbon top link, Ti hardware, internal shift, dropper post and brake routing. ISCG05 mounts, flack guard armour, 140mm (5.5") travel |
| FORK | Ohlins RFX 36 M.2 / 150mm / Boost |
| SHOCK |
Ohlins TTX22M Coil / 210mm x 50mm (140mm) / Front Reducer Size - 20mm. X 6mm., Rear Reducer Size - 20 mm. x 8 mm. |
| COIL |
350 lbs (S Size for 54 - 64 kg rider weight) / 450 lbs (M Size for 64 - 73 kg rider weight) / 500 lbs (L Size for 73 - 80 kg rider weight) / 550 lbs (XL Size for 80 - 84 kgs rider weight). |
WHEELS/TIRES
| WHEELS | ETHIRTEEN LG1 Enduro Race 30MM Rim ETHIRTEEN Alloy Hub/ Boost |
| HUBS | ETHIRTEEN hubs 32 Hole 15x110 front, 12x148 rear hub 6-bolt |
| RIMS | E13 LG1 Enduro Race / 29” x 30MM / Boost |
| SPOKES | E13 |
| TIRES |
Front: Maxxis Minion DHR II WT Exo+ 29"x 2.4” Rear: Maxxis Minion DHR II WT Exo+ 29"x 2.4” |
DRIVETRAIN
| SHIFTERS | Shimano XT 12SP I-Spec |
| REAR DERAILLEUR | Shimano XT 12SP |
| FRONT DERAILLEUR | N/A |
| CRANK | ETHIRTEEN TRS Plus 12SP / 32t / 170MM SM-LG/ 175mm XL / Boost |
| CASSETTE | Shimano XT 12SP / 11-51T |
| CHAIN |
Shimano XT 12SP |
| CHAIN GUIDE | N/A |
| BOTTOM BRACKET | EThirteen 30MM (Threaded) |
COMPONENTS
| SADDLE | SDG Radar w/ Cr-Mo Rails |
| SEATPOST | ETHIRTEEN Vario Infinite Dropper w/ adjustable travel 31.6MM / 120MM SM / 150MM MD / 180MM LG-XL (Frame Size Specific) |
| HANDLEBAR | ETHIRTEEN Race Carbon 35x800mm |
| STEM | ETHIRTEEN Plus 35 40mm |
| HEADSET | Cane Creek 40 / ZS44-EC49 |
| BRAKESET | Magura MT7 Pro Front (Four Piston) Magura Storm HC 203mm Rotors / Magura MT7 Pro Rear (Four Piston) Magura Storm HC 180mm Rotors |
| GRIPS | Intense |
*Parts/Spec are subject to change without notice.
| SIZE | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A: SEATTUBE LENGTH | 408.4MM/ 16.08” | 430.8MM/ 16.96” | 451MM/ 17.8” | 475.5MM/ 18.7” |
| B: EFFECTIVE TOPTUBE | 577MM/ 22.7” | 607.4MM/ 23.9” | 635.6MM/ 25” | 672MM/ 26.5” |
| C: STACK | 610.9MM / 24” | 611MM / 24” | 620.4MM / 24.42” | 638.9MM/ 25.2” |
| D: REACH | 420 mm/ 16.5" | 450 mm/ 17.72" | 475 mm/ 18.7" | 505MM/ 19.9” |
| E: BB HEIGHT | 345 mm/ 13.59" | 345 mm/ 13.59" | 345 mm/ 13.59" | 345 mm/ 13.59" |
| F: BB DROP | 30.3MM/ 1.2” | 30.4MM/ 1.2” | 30.52MM/ 1.2” | 30.66MM/ 1.21” |
| G: HEADTUBE LENGTH | 90 mm/ 3.54" | 90MM/ 3.54” | 100MM/ 3.94” | 120MM/ 4.7” |
| H: HEADTUBE ANGLE | 65.9 ° | 65.9 ° | 65.9 ° | 65.9 ° |
| I: SEATTUBE ANGLE | 75 ° | 75 ° | 75 ° | 75 ° |
| J: STANDOVER HEIGHT | 813.3MM/ 32” | 812.6MM/ 32” | 817MM/ 32.16” | 826MM/ 32.5” |
| K: CHAINSTAY LENGTH | 440MM/ 17.3”” | 440MM/ 17.3” | 440MM/ 17.3” | 440MM/ 17.3” |
| L: WHEELBASE | 1167.9MM/ 46” | 1198MM/ 47.2 | 1226.9MM/ 48.3” | 1264.9MM/ 49.8” |
| SUGGESTED RIDER HEIGHT | 152-167cm | 165-177cm | 175-185cm | 180-198cm |
LOWER SETTING
| SIZE | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A: SEATTUBE LENGTH | 408.4MM/ 16.08” | 430.8MM/ 16.96” | 451MM/ 17.8” | 475.5MM/ 18.7” |
| B: EFFECTIVE TOPTUBE | 579.5MM/ 22.8” | 609.6MM/ 24.0” | 637.9MM/ 25.1” | 674.3MM/ 26.55” |
| C: STACK | 615MM/ 24.2” | 615.4MM/ 24.23” | 624.9MM / 24.6” | 643.5MM/ 25.3” |
| D: REACH | 414 MM/ 16.3" | 444 MM/ 17.48" | 469MM/ 18.46” | 499MM/ 19.64” |
| E: BB HEIGHT | 337MM/ 13.3” | 337MM/ 13.3” | 337MM/ 13.3” | 337MM/ 13.3” |
| F: BB DROP | 37.7MM/ 1.48” | 37.9MM/ 1.48” | 38.1MM/ 1.5” | 38.4MM/ 1.5” |
| G: HEADTUBE LENGTH | 90MM/ 3.54” | 90MM/ 3.54” | 100MM/ 3.94” | 120MM/ 4.7” |
| H: HEADTUBE ANGLE | 65.3 ° | 65.3 ° | 65.3 ° | 65.3 ° |
| I: SEATTUBE ANGLE | 74.3 ° | 74.3° | 74.3° | 74.3° |
| J: STANDOVER HEIGHT | 807.6MM/ 31.8” | 807.6MM/ 31.8” | 811MM/ 31.9” | 820MM/ 32.3” |
| K: CHAINSTAY LENGTH | 440MM/ 17.3” | 440MM/ 17.3” | 440MM/ 17.3” | 440MM/ 17.3” |
| L: WHEELBASE | 1168.9MM/ 46” | 1199MM/ 47.2” | 1227.82MM/ 48.3” | 1265.8MM/ 49.83” |
| SUGGESTED RIDER HEIGHT | 152-167cm | 165-177cm | 175-185cm | 180-198cm |
